Description

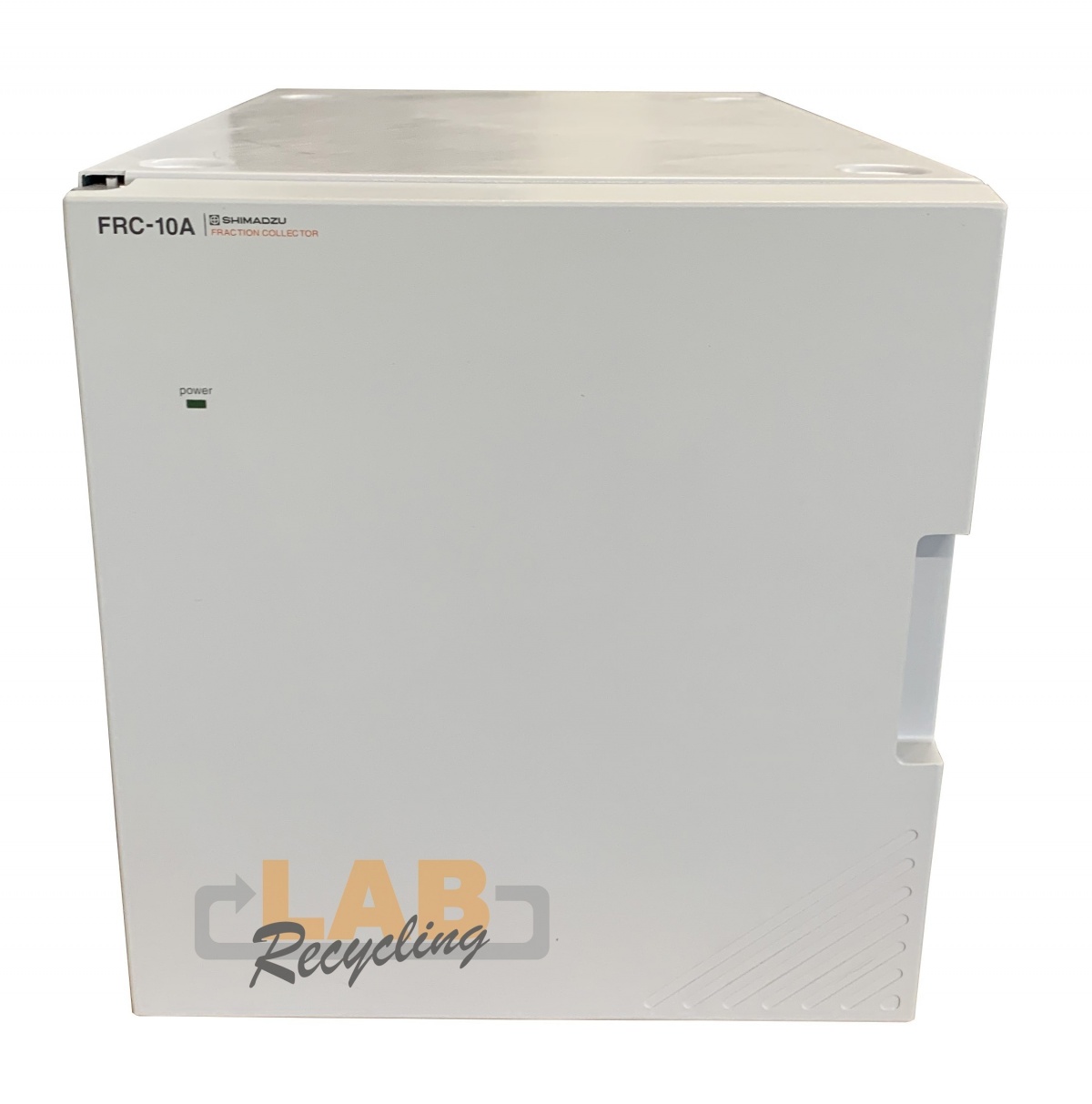

The Shimadzu FRC-10A fraction collector meets the demands for continuous, automated fraction collection. Pair the FRC-10A with the SCL-10AVP System Controller for unparalleled performance for a wide range of fraction collection applications.
| Drive System |
Arm movement (X-Y) system |
| No. of collection vessels |
16~144, depending on rack type (variable through parameter setting) |
| Collection method |
Solenoid valve (incl.) or direct through nozzle (W/out solenoid valve) |
| Maximum flow rate |
150mL/min (water) |
| Collection operation |
Programmed operation via SCL-10AVP System Controller, or manually |
| Fraction modes |
Basic mode (using initial parameters), and Time Program mode (14 different functions available) |
| No. of collection files |
Up to 10 in memory (Total No. of program steps: 100) |
| Output of setting parameters, results* |
Printout via Chromatopac |
| Cooling of fractions |
Possible with Sample Cooler L (Optional) |
| Collection based on 2-channel generated ratio chromatogram |
SPD-10AVP/10AVVP dual-wavelength signal, or signals from 2 detectors |
| Linking with external devices |
With SCL-10AVP System Controller, any of LC-10AVP components may be linked. |
| Detector signal input |
0~1V |
| Dimensions, weight |
260 (W) ×420 (D) × 280 (H) mm, 15kg |
| Ambient temperature range |
4~35°C |
| Power requirements |
-91 100V, 100VA, 50/60Hz
-93 220V, 100VA, 50/60Hz
-92 120V, 100VA, 50/60Hz
-38 220~240V, 100VA, 50/60Hz
|
* Current loop interface (Cat. No. 228-21204-91) is necessary.
Source: The VP Series Means Validation and Productivity
