Description
Large-capacity, forced hot-air circulation units, the CTO-20A/20AC HPLC column ovens precisely regulate the temperature around the column. Automatic fan-speed control varies with the set temperature to provide stable analysis that is not influenced by the ambient temperature.

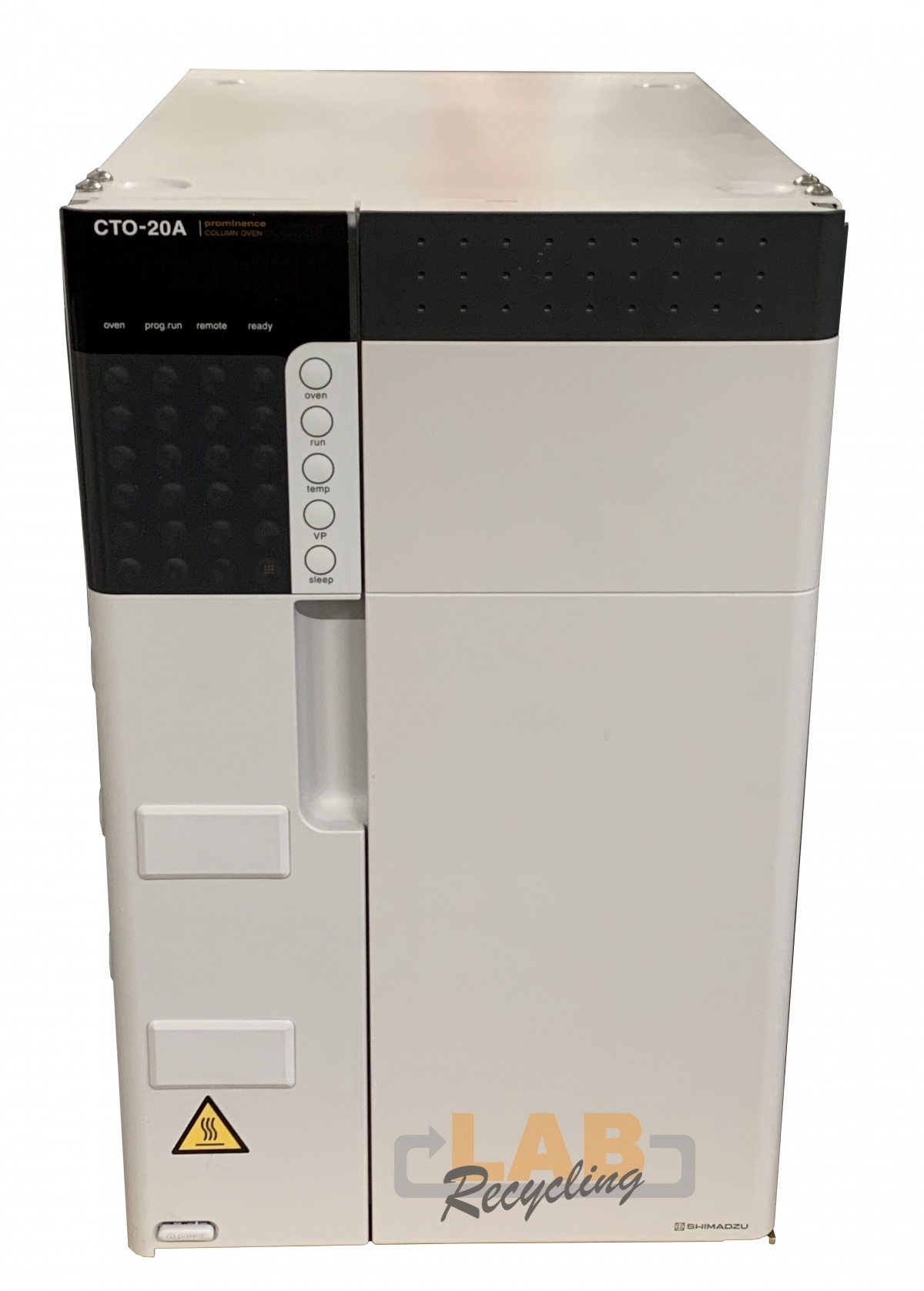

CTO-20A - Precise Temperature Control
A forced-air circulation-type column oven, the CTO-20A can regulate the temperature from 10ºC above room temperature to 85ºC. Rapid temperature equilibration allows complex temperature programs incorporating linear and/or step-wise increases and decreases in temperature.
Precise Temperature Regulation
The interior of the oven is precisely regulated with a high-performance thermistor. The temperature is calibrated at two different temperatures to ensure a high level of temperature accuracy.
Large Inner Space
In addition to the column, other system parts can be accommodated.
These include:
- Manual injector
- Gradient mixer
- High-pressure flow-line selection valves (2-position/6-port valves or 6-position/7-port valves, two in total)
- Conductivity-detection cell block
- Pre-or post-column reaction coil
Features:
| Temperature-control method |
Forced-air circulation |
| Cooling method |
None |
| Temperature-setting range |
4oC to 85oC |
| Temperature-control precision |
0.1oC max. |
| Temperature-control range |
10oC above room temperature to 85oC |
| Storage capacity |
10 columns, max 25 cm length |
| Storable devices |
2 manual injectors, gradient mixer, 2 high-pressure flow-line selection valves, etc. |
| Time program |
Linear temperature programs supported |
| Safety measures |
Solvent sensor, temperature fuse, temperature upper limit |
| Operating temperature range |
4oC to 35oC |
| Dimensions, weight |
260 (W) x 415 (H) x 420 (D) mm, 20 kg |
| Power requirements |
100 VAC, 500 VA, 50/60 Hz |
