Description
This is a ultra-high-speed LC that achieves both ultra-high-speed analysis and ultra-high separation, based on high analysis precision and reliability.
One CBM is a necessary component to complete a modular system. The CBM also offers the first web based browser which allows for additional management and system efficiency.

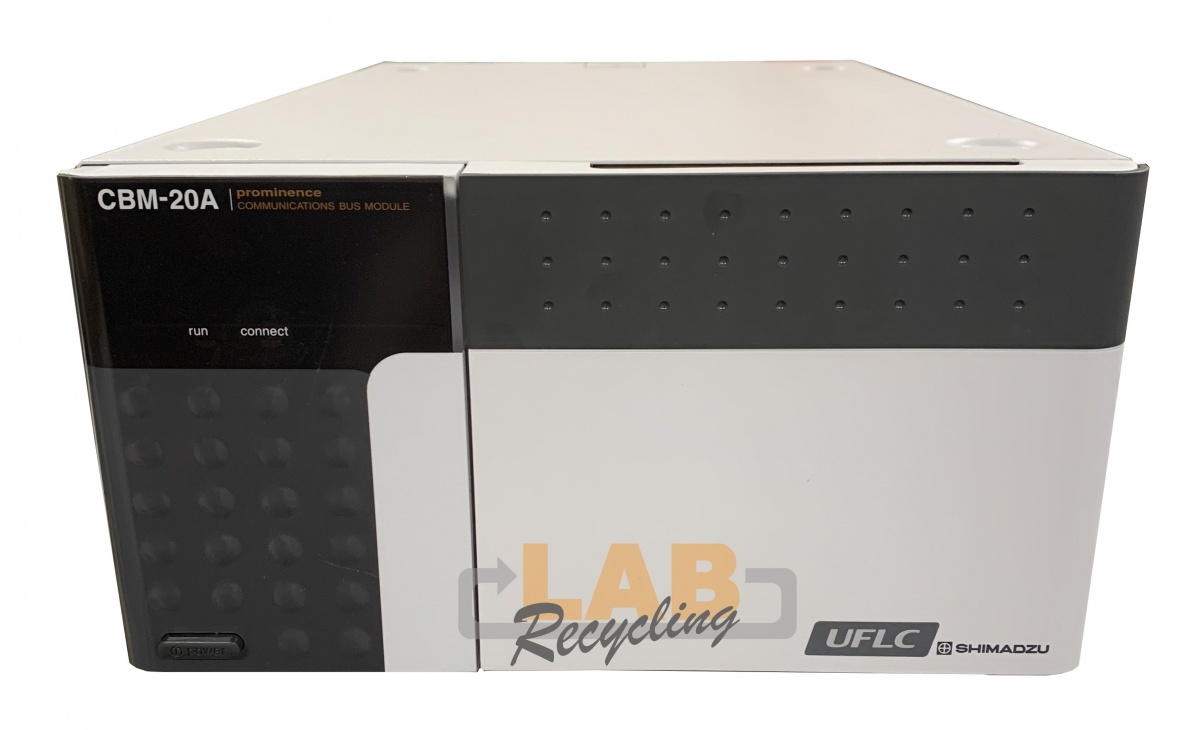

Shimadzu CBM-20A Prominence UFLC
A stand-alone system controller designed for maximum flexibility. Up to twelve LC modules and two channels of analog data can be connected for acquisition.
| Connectable Units |
Solvent delivery units: 4 max Autosamplers: 1 Column ovens: 1 Detectors: 2 max Fraction collectors: 1 Sub-controllers: 2 max. |
| Number of connectable units |
8 (expansion possible up to 12) |
| Data Buffering |
Approx. 24 hours for one analysis (at 500ms sampling rate;available only with LCsolution) |
| Event I/O |
4 inputs, 4 outputs |
| Analog Boards |
Up to 2 boards can be mounted |
| Operating temperature range |
4°C to 35°C |
| Dimensions, weight |
260 (W) x 140 (H) x 420 (D) mm, 5.5 kg |
| Power requirements |
100 VAC, 100VA, 50/60HZ |
