Description
The CTO-20AC precisely regultaes the temperature around the column and supports stable analysis is not influenced by the ambient temperature. In addition to the column, various other parts and units can be accommodated, including a manual injector, gradient mixer, high-pressure flow-line selction valves, a conductivity-detection cell block, and a rection coil.
This model is equipped with a cooling function. Using an electronic cooler, it can regulate the temperature in a large range going from 10ºC room temperature to 85ºC .

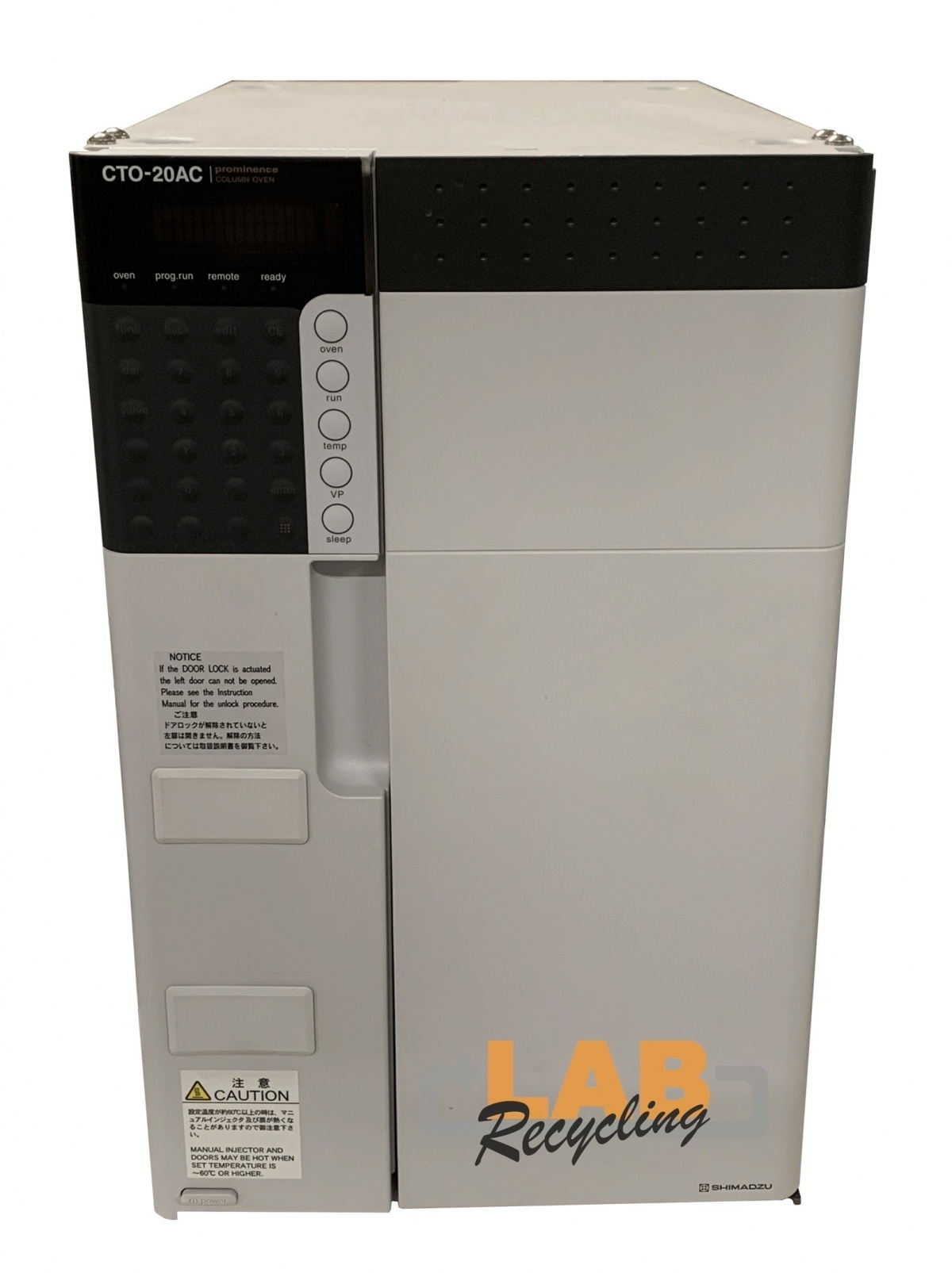

CTO -20AC Prominence
| Temperature-control method |
Forced air-circulation |
| Cooling method |
Electronic cooling |
| Temperature setting range |
4ºC-85ºC |
| Temperature-control precision |
0,1 ºC max. |
| Temperature-control range |
10ºC below room temperature to 85ºC |
| Starage capacity |
220 (W) x 365 (H) x 95 (D) mm |
| Storable devices |
2 manual injectors, gradient mixer, 2 high-pressure flow-line selection valves etc. |
| Time program |
Linear temperature programs supported |
| Safety measures |
Solvent sensor, temperature fuse, temperature upper limit |
| Operation temperature range |
4ºC-35ºC |
| Dimensions, weight |
260 (W) x 314 (H) x 420 (D) mm, 23 kg. |
| Power requirements |
AC 110V, 230V,100V, 50/60Hz |
