Description
The Waters In-Line Degasser AF provides HPLC systems with an automatic, continuous method for removing dissolved gasses from mobile phases. The continuous running pump cycles between high-speed, to provide rapid vacuum pull-down, and low-speed, to sustain a consistent vacuum level. This unique approach enables rapid vacuum equilibration for faster eluent equilibration. The In-Line Degasser AF's continuous operating mode improves chromatographic performance for high-sensitivity applications by eliminating detector baseline drift caused by pump hysteresis in discontinuous operating modes.

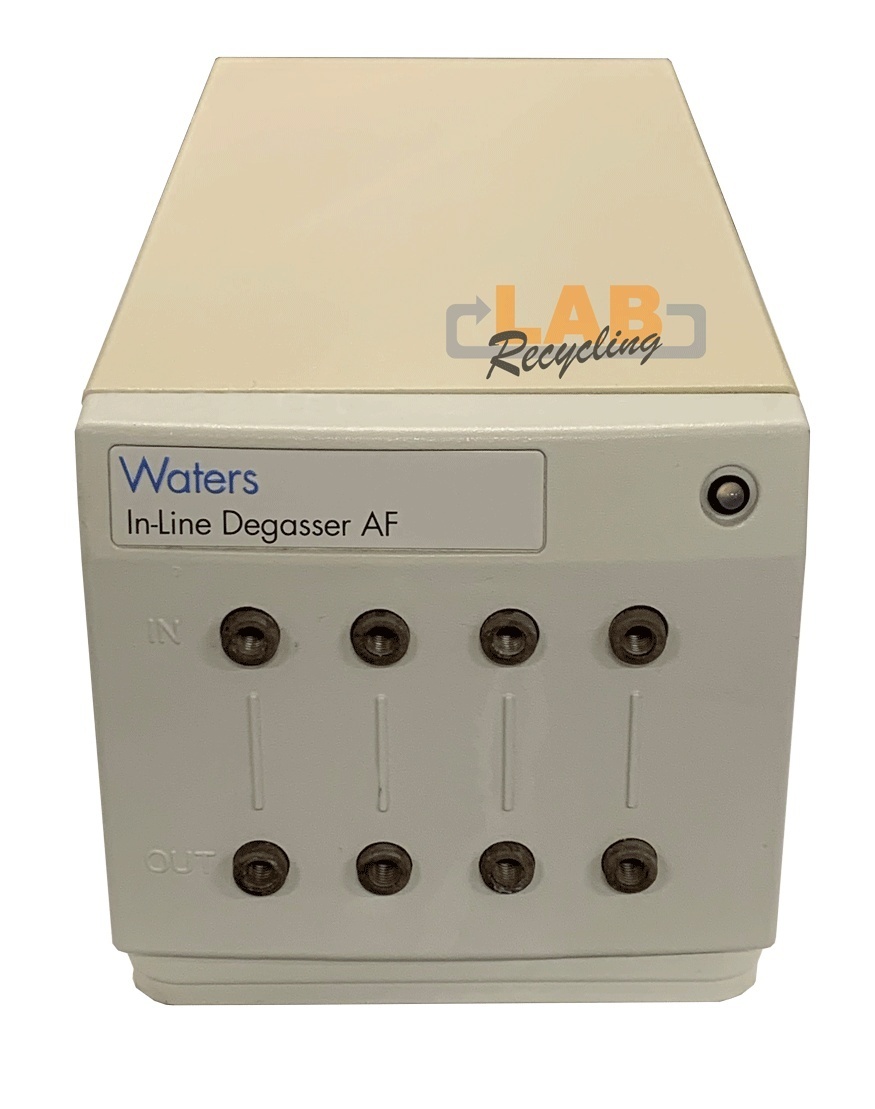

HPLC Module Waters In-Line Degasser AF
| Chemical Resistance |
Unaffected by full range of organic solvents and aqueous solutions of acids, bases, salts,
and surfactants |
| pH Range |
0 to 14 |
| Gas Removal |
Varies with flow rate |
| Typical Operating Flow Range |
200µl/min to 5ml/min |
| Equilibration time |
<1 hour |
| Pressure Drop |
<0.08 psi (0.55 kPa) at 1 mL/min., Milli-Q®
water, STP |
| Wetted Surfaces |
PPSa, Teflon AFb, Tefzelc |
| Inputs |
Enable, Disable (External control) |
| Outputs |
dc voltage (Relative vacuum) |
| Eluent Connections |
1/4-28 reversed ferrule fittings;
4 inlet and 4 outlet fittings |
| Vacuum Chambers |
One chamber/eluent, two channels standard, third or fourth channel optional;
<0.5 mL internal volume/channel |
| Tubular Membrane |
1/vacuum chamber, Teflon AF |
| Vapor Exhaust |
1/8-inch (3 mm) barbed fitting |
| Vacuum Source |
Built-in 2-head diaphragm pump, solvent resistant |
| Vacuum Sensor |
Detects vacuum from 0 to 15.6 psiA |
| Dimensions |
13.33 cm (W) X 14.60 cm(H) X 30.48 cm (D)
|
| Power |
115 Vac (85 to 132 V), 50/60 Hz
230 Vac (187 to 264 V), 50/60 Hz
Autosensing |
| Weight |
3,4 KG. |
| Ambient Temperature |
4 to 40 °C ( |
| Relative Humidity |
10 to 90%, noncondensing |
