Description
The RF-10A xl offers excellent sensitivity, wavelength accurancy and reproducibility as well as comprehensive GLP/GMP support functions to further increase the reliability of analysis data. The wavelength scanning function determines the optimum detection wavelenght for target constituents, and highly sensitive, efficient, and simultaneous analyses of multiple constituents is performed using the wavelenght programming function.

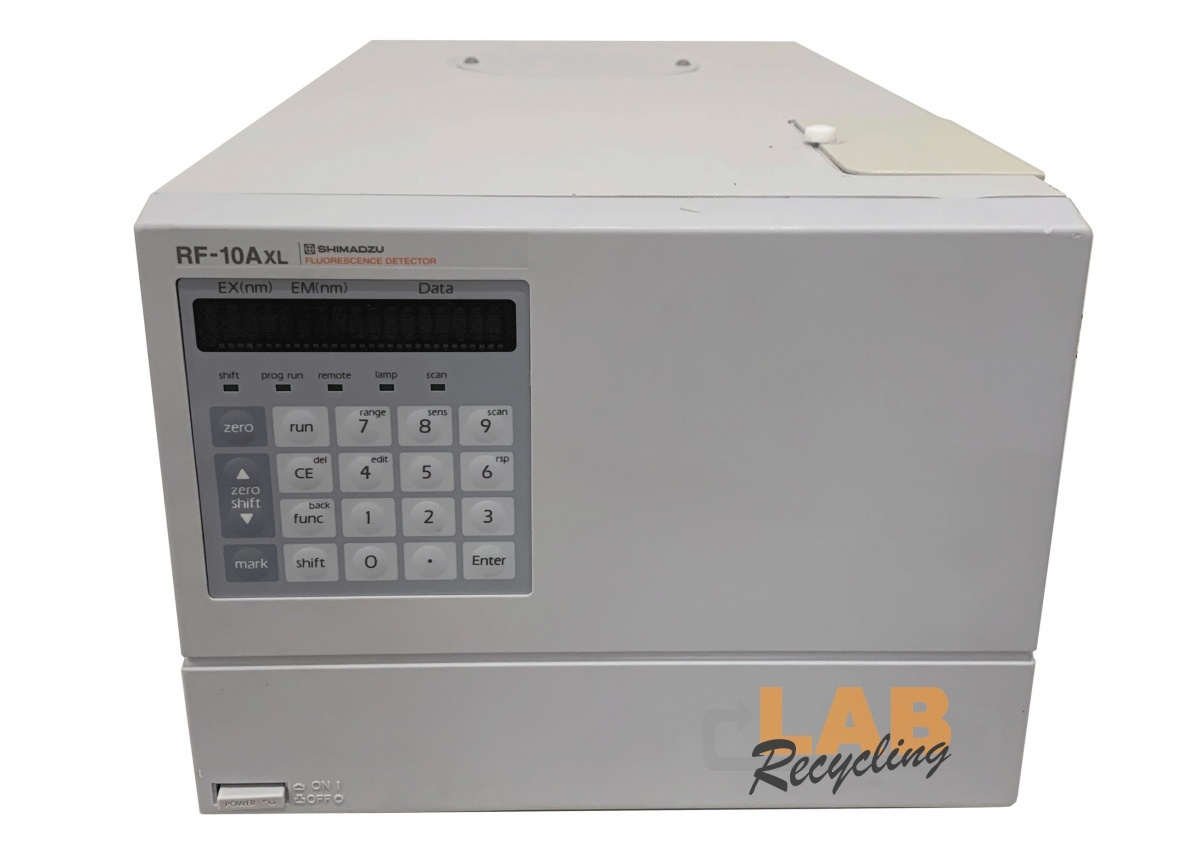

Shimadzu RF-10Axl
| |
RF-10Axl (228-45096-xx) |
| Light source |
150-W xenon lamp |
| Spectrometer |
Blazed, holographic, concave diffraction grating, F/2.4 |
| Wavelength range |
200 to 650nm (option: 200 to 750nm * 1 or 200 to 900 nm *2) |
| Bandwidth |
15 nm (on both excitation and emission sides) |
| Wavelenght accuracy |
± 2nm |
| Detection sensitivity |
±0,2nm |
| Cell |
12µL; 2Mpa (approx. 20kgf/cm²); SUS316, silia, PTFE |
| Wavelenght scanning |
Scanning for excitation and emission wavelenghts, differential spectra possible |
| Programming |
Time programs for wavelength conditions of up to 32 steps can be created. |
| Operation temperature range |
4°C to 35°C |
| Dimensions, weight |
60 (W) x 205 (H) x 520 (D) mm, 17 kg |
| Power requirements |
AC110V, 230V, 350VA, 50/60 Hz |
