Description
The Agilent 1260 Infinity autosampler is designed for use with other modules of the Agilent 1200 Infinity Series, 1200 Series and 1100 Series LC, or with other LC systems if adequate remote control inputs and outputs are available. The autosamplers are controlled by the Agilent Instant Pilot (G4208A) or by Agilent control software (OpenLAB CDS, ChemStation for LC, EZChrom Elite etc.).

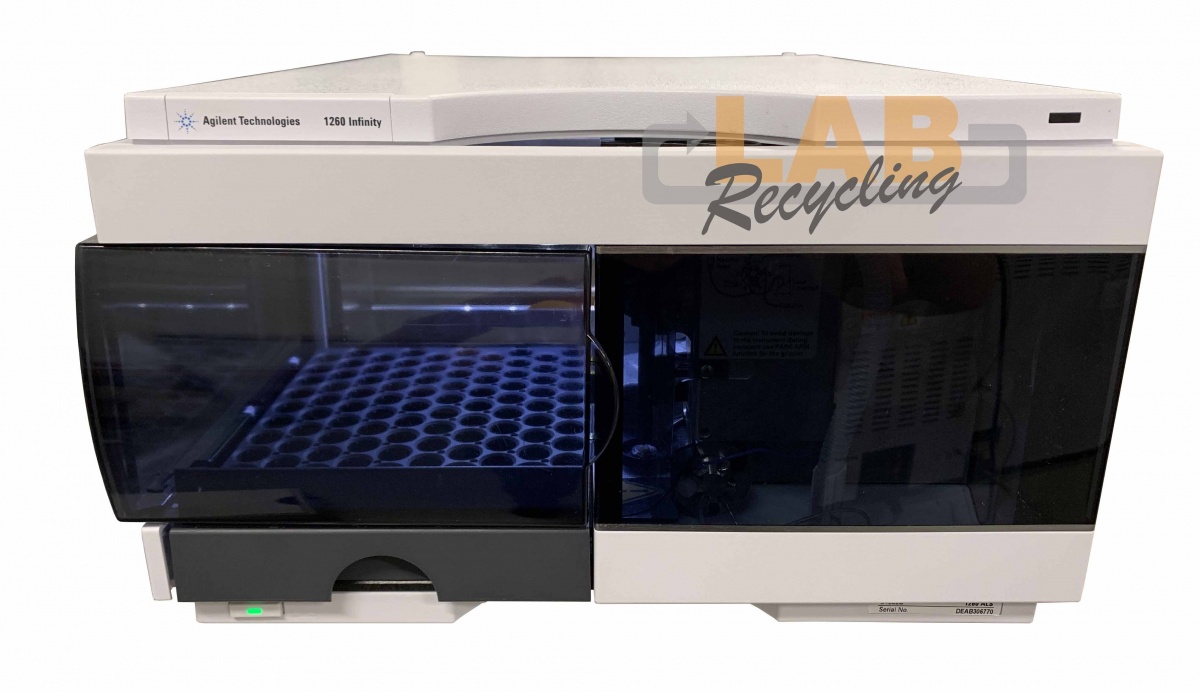

Agilent G1329B 1260ALS
Three sample-rack sizes are available for the autosampler. The standard full-size rack holds 100 × 1.8 mL vials, while the two half-size racks provide space for 40 × 1.8 mL vials and 15 × 6 mL vials respectively. Any two half-size rack trays can be installed in the autosampler simultaneously. A specially designed sample-rack holding 100 × 1.8 mL vials is available for use with thermostatted autosamplers. The half-size racks trays are not designed for an optimal heat transfer when they are used with a thermostatted autosampler.
Analytical head technical data
| |
Standard (100 μL) |
Extended Volume (900 μL) |
| Number of steps |
15000 |
15000 |
| Volume resolution |
7 nL/motor step |
60 nL/motor step |
| Maximum stroke |
100 μL |
900 μL |
| Pressure limit |
600 bar |
400 bar (G1329B) 200 bar (G1329A) |
| Piston material |
Sapphire |
Sapphire |
Injection-Valve Technical Data
| |
Autosampler |
| Motor type |
4 V, 1.2 A stepper motor |
| Seal material |
PEEK |
| Stator material |
None |
| Number of ports |
6 |
| Switching time |
< 150 ms |
Physical specifications
| Weight |
14.2 kg (32 lbs) |
|
| Dimensions |
200 × 345 × 435 mm (8 × 13.5 × 17 inches) |
|
| Line voltage |
100 – 240 VAC, ± 10 % |
Wide-ranging capability |
| Line frequency |
50 or 60 Hz, ± 5 % |
|
| Power consumption |
300 VA / 200 W / 683 BTU |
Maximum |
| Ambient operating temperature |
0–55 °C (32–131 °F) |
|
| Ambient non-operating temperature |
-40 – 70 °C (-40 – 158 °F) |
|
| Humidity |
< 95 % r.h. at 40 °C (104 °F) |
Non-condensing |
| Operating altitude |
Up to 2000 m (6562 ft) |
|
| Non-operating altitude |
Up to 4600 m (15091 ft) |
For storing the module |
| Safety standards: IEC, CSA, UL |
Installation category II, Pollution degree 2 |
For indoor use only |
